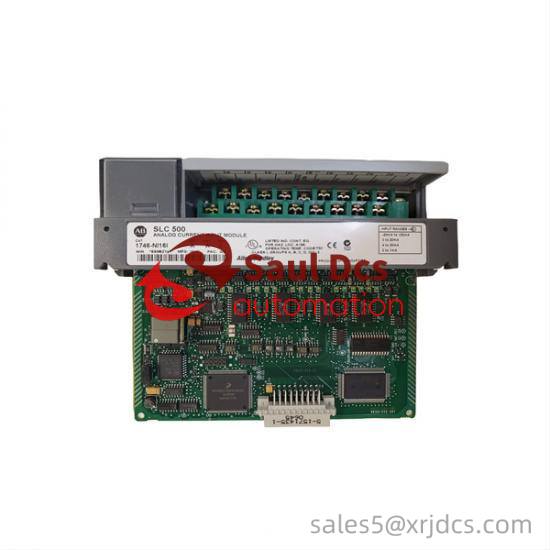

Allen-Bradley 1746-NI16I SLC500 Analog Input Module
The Allen-Bradley 1746-NI16I SLC500 Analog Input Module is an essential component designed for efficient analog signal processing in industrial automation systems. It supports up to 16 channels, enabling precise monitoring and control of various input signals.
Model Type:SLC500
Model Number:1746-NI16I
Manufacturer(s):Allen Bradley
Number Of Channels:16
Input:Common Mode Voltage Range: Plus/Minus 10.25 V Relative To Analog Common Terminal, Type Of Input: Plus/Minus 20 MA, 4 – 20 MA, 0 – 1 MA, 0 – 20 MA
Voltage Input Without Damage:Plus/Minus 8 V Between Any Two Signal Terminals
Current Rating:Backplane: 125 MA At 5 VDC, 75 MA At 24 VDC
Current Input:Plus/Minus 30 MA
Isolation:500 VAC Isolation For 1 SEC
Power Rating:Backplane: 2.425 W
Enclosure:Open Type
The Allen-Bradley 1746-NI16I SLC500 Analog Input Module is an advanced solution designed for high-performance analog signal acquisition in industrial environments. This module offers 16 independent channels capable of handling a variety of analog inputs including 4-20 mA and 0-20 mA. With its robust design and precise specifications, it ensures reliable operation even under challenging conditions. Its open-type enclosure allows for easy installation and maintenance, making it a preferred choice for system integrators and end-users alike.
The module supports a wide common mode voltage range, ensuring compatibility with a diverse array of sensors and transmitters. Furthermore, its high current rating and isolation capability make it suitable for demanding applications requiring precision and stability.
By integrating this module into your automation system, you can achieve accurate and consistent analog signal processing, which is essential for optimizing performance and reliability. Whether you’re working on a new project or upgrading an existing setup, the Allen-Bradley 1746-NI16I Analog Input Module stands out as a reliable and efficient option.
