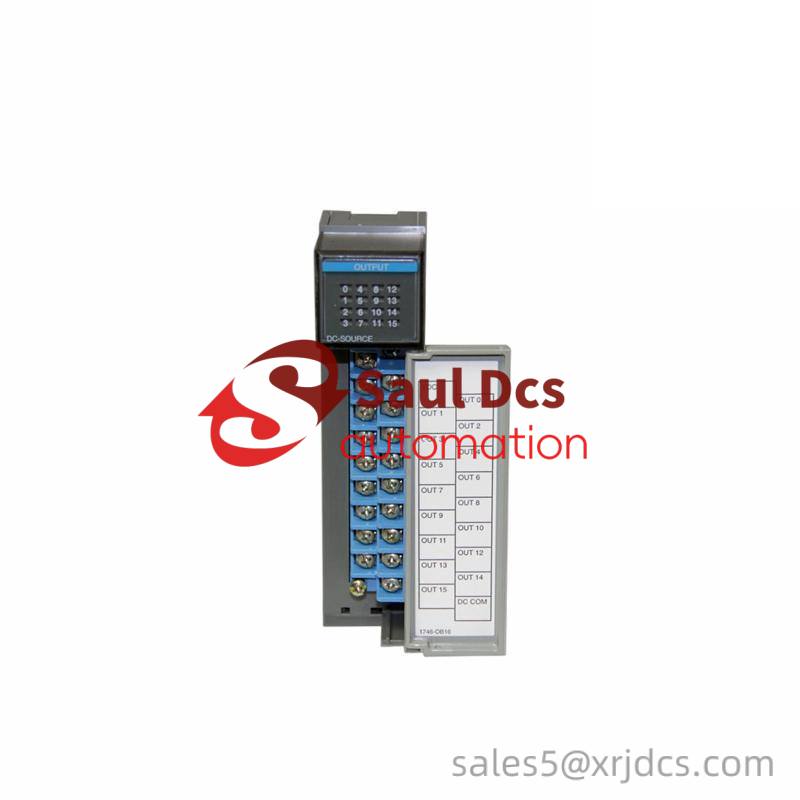

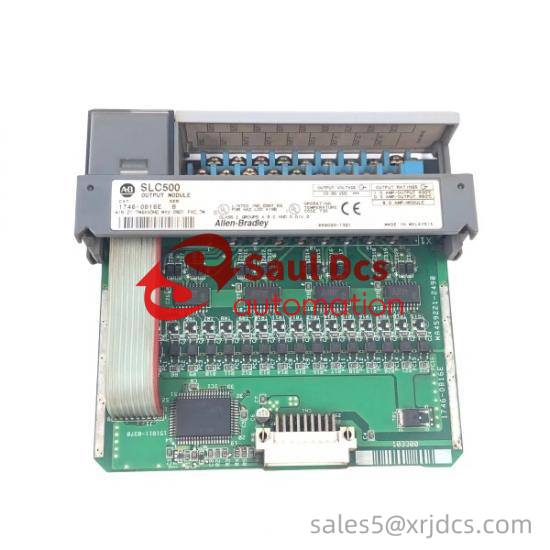

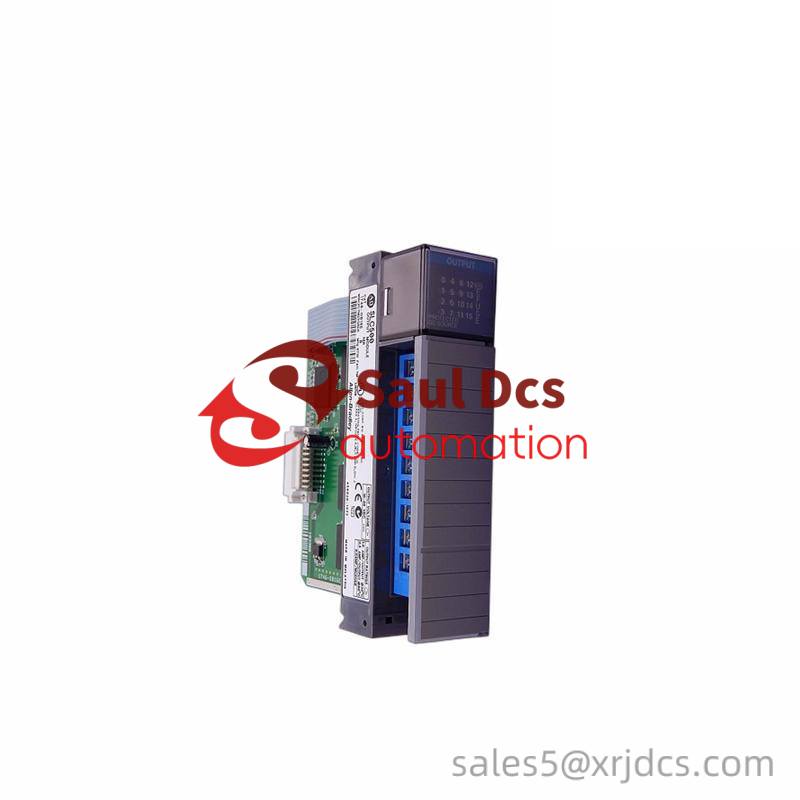

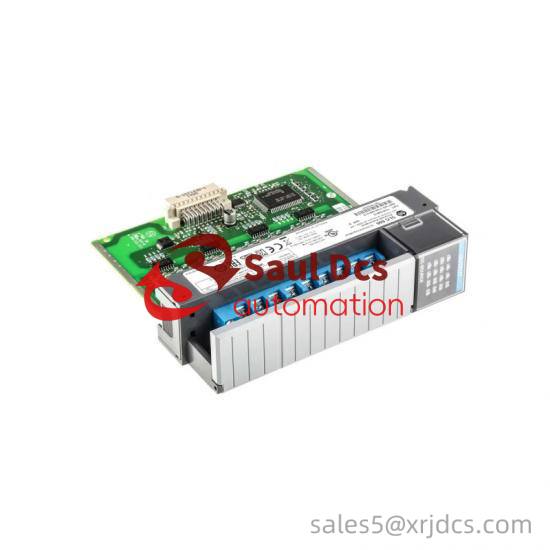

Allen-Bradley 1746-OB16 Digital DC Output Module
The Allen-Bradley 1746-OB16 is a digital direct current output module designed for industrial control systems. It provides reliable and efficient control solutions, suitable for various applications including manufacturing, processing plants, and automation systems.
Model Number:1746-OB16
Manufacturer:Allen Bradley
Module Type:Digital DC Output Module
Number of Channels:16
Input Voltage:24 VDC
Output Voltage:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating:{“Backplane”:”0.28 A”,”Continuous Current Per Output”:”0.25 A at 60°C”,”Continuous Current Per Module”:”4 A at 60°C”}
Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”,”Processor”:”SLC 500″}
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95%
The Allen-Bradley 1746-OB16 Digital DC Output Module is a high-performance solution designed for industrial environments.
It boasts 16 channels, each capable of delivering up to 50 VDC at a continuous current rating of 0.
25 A when operating at 60 degrees Celsius.
This module ensures reliable performance through its robust design and stringent isolation specifications, making it perfect for integration into complex automation systems.
With a temperature range of 0 to 60 degrees Celsius, it can operate efficiently in a wide variety of industrial settings.
