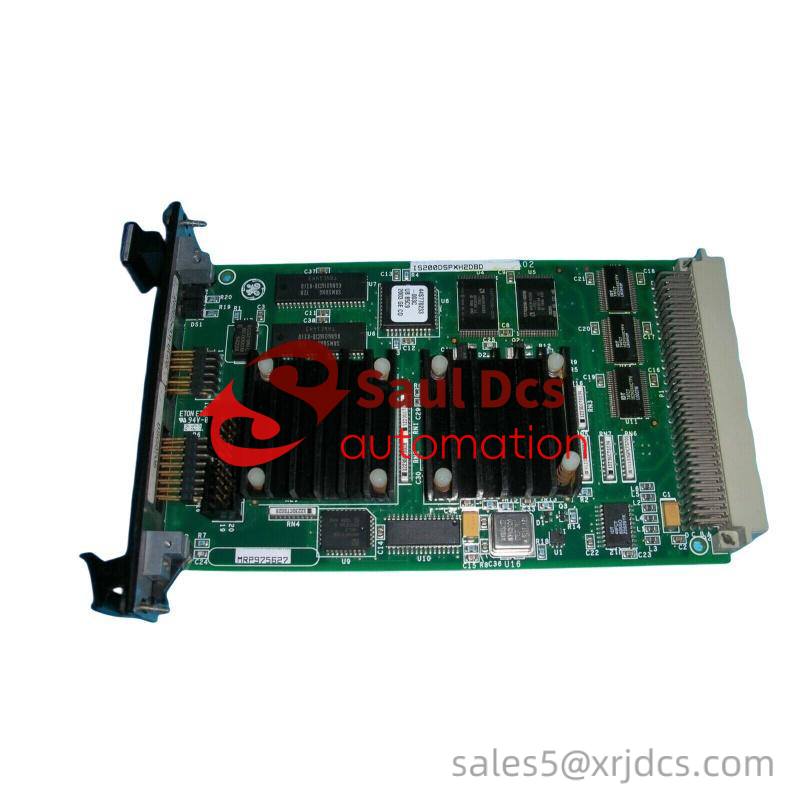

GE IS200DSPXH2DBD Drive DSP Control Board for Mark VI Series
The GE IS200DSPXH2DBD is a specialized drive DSP control board designed for the Mark VI series by General Electric. It serves as a critical component in industrial turbine management, facilitating precise control over motor and bridge regulation.
Backplane Input Quantity:6
Board Description:Digital Signal Processor Control Board
Board Use Mode:Controller for Motor and Bridge Regulation
Functional Acronym:DSPX
I/O Connector Quantity:3
LEDs:P6, P1, and P5 LEDs for status and fault indication
Onboard Firmware:Application Code, Boot Loader, and Configuration Parameters
Part-Specific Manual:GEI-100267B
Serial Interfaces:Asynchronous TTLs and Five Mb/s ISBus
Physical Size:Mid-sized printed circuit board
Connector Port:Large white connector port on the right edge
The GE IS200DSPXH2DBD is a critical component in the Mark VI series of gas and steam turbine controls, enhancing industrial turbine management efficiency and reliability.
This advanced drive DSP control board integrates a high-speed digital signal processor and application-specific circuits, delivering superior performance in demanding environments.
The board supports dual 5 Mb/s ISBus interfaces, enabling seamless communication between controllers and peripherals, essential for complex industrial systems.
With onboard memory including FLASH, RAM, and NVRAM, the IS200DSPXH2DBD ensures robust data storage and retrieval capabilities, supporting continuous operation in industrial applications.
The large white connector port on the right edge facilitates easy connectivity, ensuring reliable data transfer and control signals between the board and external systems.
