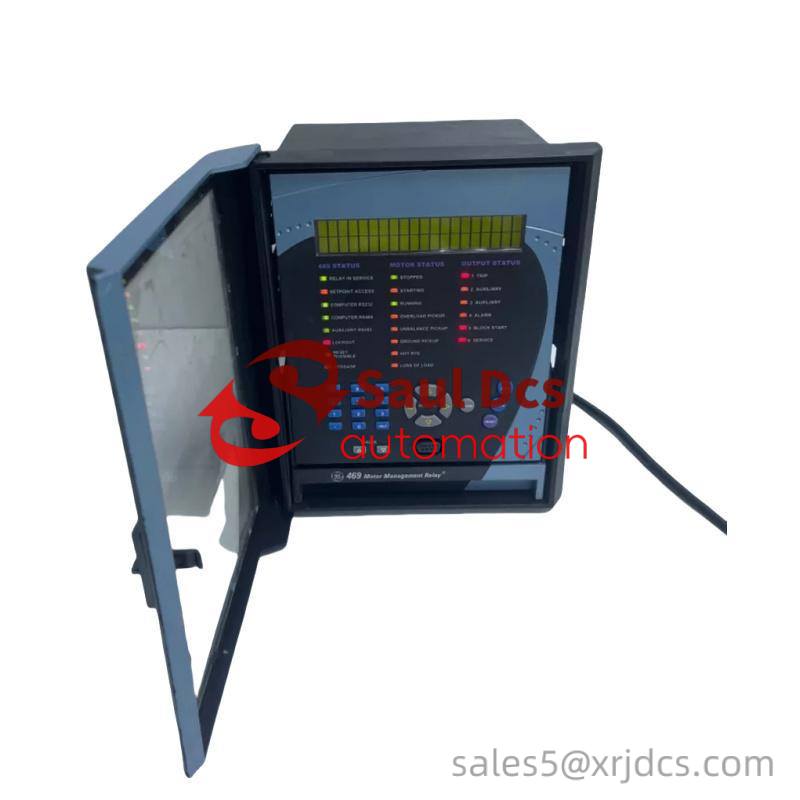

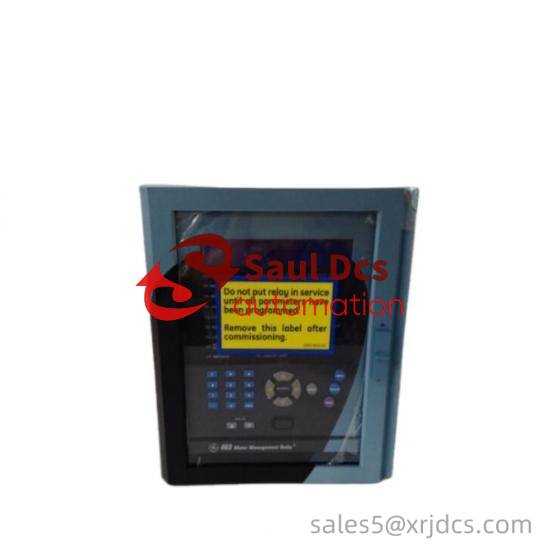

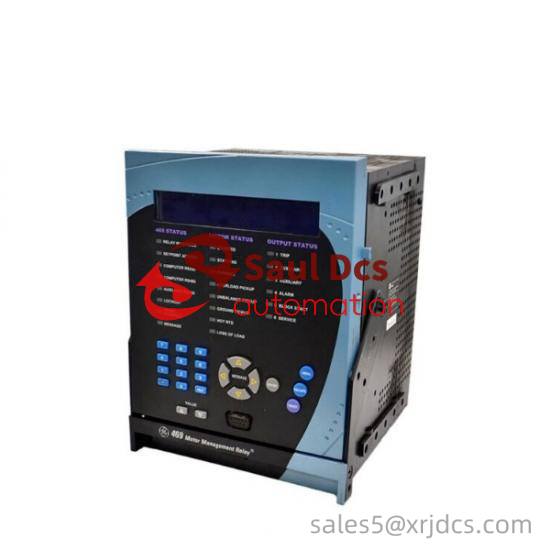

GE SR469-P5-HI-A20 High-Voltage Plant Working & Standby Branch Controller

GE SR469-P5-HI-A20 High-Voltage Plant Working & Standby Branch Controller

    The GE SR469-P5-HI-A20 is an advanced Motor Management Relay designed for high voltage industrial environments. It provides precise motor protection, real-time temperature monitoring, and enhanced RTU functionalities, ensuring optimal performance and reliability in plant operations.

Manufacturer:General Electric

Model Number:469-P5-HI-A20

Power Range:90 to 300 VDC or 70 to 265 VAC

Frequency Range:48-62 Hz

Phase CT Rating:5A

Analog Outputs:4

RTD Inputs:Multiple (100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, 100 ohm Platinum)

Current Rating:390/500 mA (MAX)

Line Voltage:90-300VDC, 70-265VAC

Enclosure Rating:20-X

Pollution Degree:2

Overvoltage Category:II

Insulation Voltage:300 V

Ethernet Port:10Base-T

Number of Ports:3 (Front RS232, Rear Com RS485 and Aux RS485)

Software:EnerVista 469 Setup

Weight Before Packaging:Less than 15 lbs

    The GE SR469-P5-HI-A20 is an advanced motor management relay designed specifically for industrial control applications. This relay is equipped with multiple RTD inputs that accurately monitor motor temperatures, ensuring optimal performance and safety. With its robust design and versatile features, it offers enhanced protection and management capabilities for motors of varying sizes.

    Key design highlights include the use of high-quality materials for reliable operation in harsh environments. The relay supports a wide voltage and frequency range, making it suitable for various industrial settings. Additionally, the four analog outputs allow for seamless integration with other control systems, providing real-time data for efficient management.

    The GE SR469-P5-HI-A20 is built with an IP65 rating when equipped with optional conformal coating, ensuring durability and longevity in challenging conditions. The front RS232, rear RS485, and auxiliary RS485 communication ports facilitate easy connectivity and data exchange.

    Designed for ease of use, the EnerVista 469 Setup software simplifies configuration and management tasks, reducing setup time and improving operational efficiency. Whether you’re managing small to large-scale motor systems, the GE SR469-P5-HI-A20 delivers exceptional performance and reliability.
