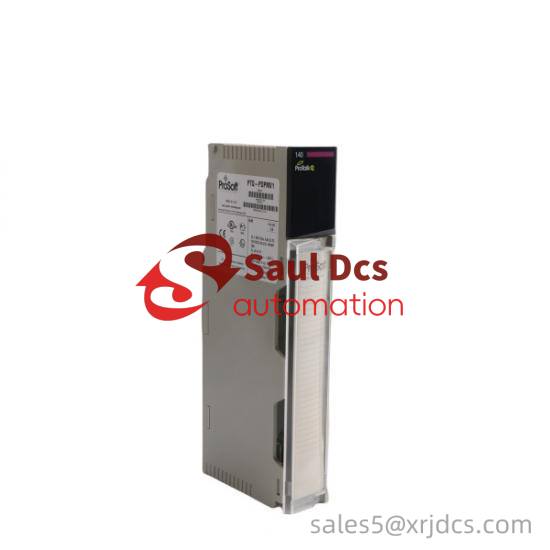

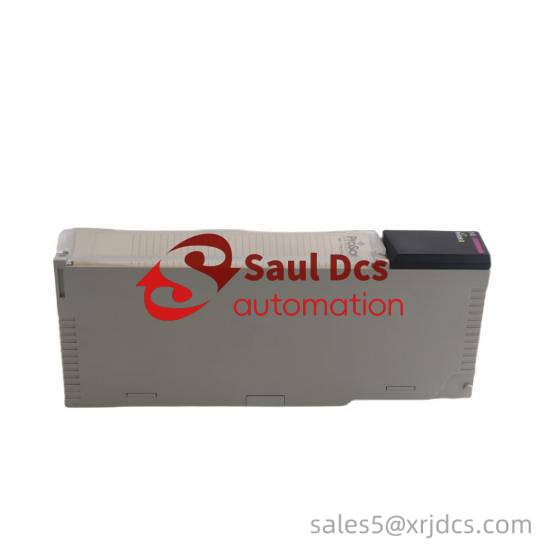

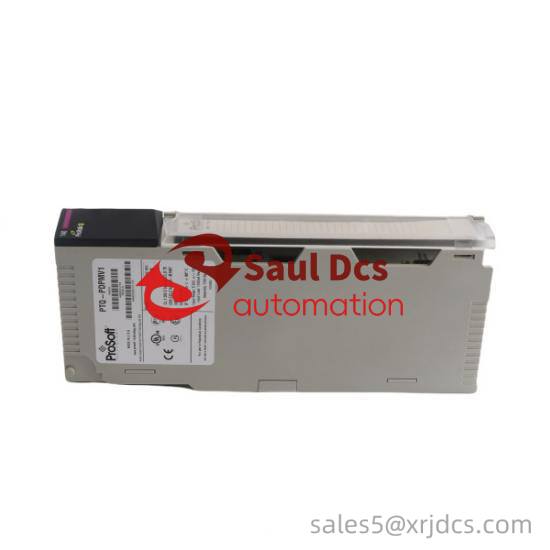

ProSoft Technology PTQ-PDPMV1 Communication Module for MV Control Systems
The ProSoft Technology PTQ-PDPMV1 is designed for seamless integration with remote rack configurations in industrial environments. Utilizing the ProSoft Configuration Builder software, it offers a user-friendly Windows-based GUI for configuring products and networks effortlessly. This communication module facilitates data transfer using sample ladder logic and AOIs, ensuring reliable operation even in challenging conditions.
Module Type:Control Module
Software Support:ProSoft Configuration Builder
Data Transfer Mechanism:Ladder Logic and AOIs
Networking:Genius, Ethernet, MODBUS TCP
Communication Range:Up to 2.3 km with shielded twisted pair, up to 15 km with fiber optic
Display:4-character alphanumeric LED
Status Indication:Plain English messages
Firmware Updates:Via internal web server
Service Support:ProSoft Discovery Service
The PROSOFT PTQ-PDPMV1 is a robust and reliable communication module tailored for integration with GE Mark V control systems. This module offers a straightforward setup experience through its Windows-based graphical user interface, ProSoft Configuration Builder (PCB). PCB simplifies the process of configuring the module and network, making it ideal for remote rack implementations. It supports sample ladder logic and Add-On Instructions (AOIs) for data transfer between the module and processor. The internal web server provides easy access to product documentation, module status, diagnostics, and firmware updates, ensuring that users can always stay informed about the system’s health. Additionally, the 4-character alpha-numeric LED display provides clear status and diagnostic information in plain English, eliminating the need for deciphering cryptic error codes. The ProSoft Discovery Service (PDS) further enhances the user experience by facilitating quick and efficient system diagnostics.
